Alumax Tensio    512 - 612 cm.

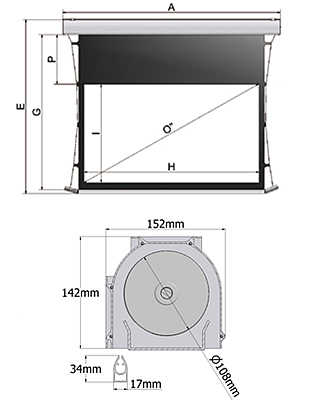

Format
Overall width
Overall height
Surface width
Surface height
Net surface width
Net surface height
Top standard
Max extra top
Diagonal inches
Shipment sizes
Net weight
Gross weight
A
E
F
G
H
I
P
cm
O''
cm
kg
kg
4:3 with case

512

385

474

363

464

348

10

20

228

530x29x32

82

107

612

460

574

438

564

423

10

20

278

630x29x32

100

125

4:3

512

384

474

363

464

348

10

20

228

530x20x21

53

75

612

459

574

438

564

423

10

20

278

630x20x21

65

87


Characteristics:

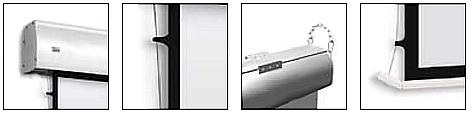

Large-scale screens no longer fear the “tensioning test”.  In addition to its trademark 150 mm. diameter aluminium roller, and the case which is open underneath, the Alumax screen can count on another formidable feature to guarantee the perfect planarity of large-scale canvases: the CTS (Constant Tension System), which ensures the constant self-tensioning of the screen by means of two counterweights hooked onto hinges placed at the ends of the screen’s base, devised for tensioning rigid cables threaded through lateral eyelets. This also prevents the formation of creases during rolling, since the eyelets are positioned outside the projection surface.

The ideal technical solution for excellent projection even in the largest spaces.

Create your own screen with PSS (Personal Screen System):

  • Personalized dimensions: width and height with a maximum height of 5 m
  • Roller type: standard motorized
  • Case: available only with case
  • Case colour: available only in white
  • Projection surfaces: VisionWhite, VisionAcoustik and Vision MacroAcoustik only with black border
  • Height of Top: from 10 to 20 cm
  • Projection surface drop: front or rear
  • Side of command/motor: right or left


  Standard accessories:

  • kit with wall- or ceiling-mount brackets
  • unipolar selector switch

  Optional accessories:

  Download:
