Multiformat Screen 225 - 325 cm.







Characteristics:

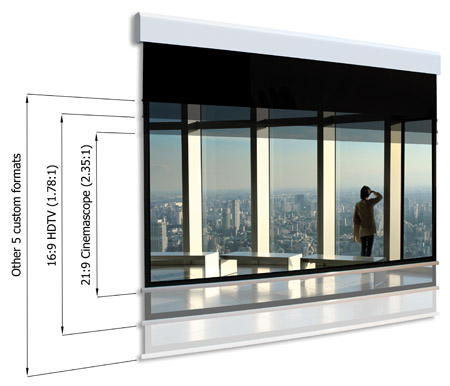

Multiformat was especially created by Adeo for real connoisseurs of home cinema. This screen is distinguished by the presence of two independent projection surfaces (a top masking surface and a rear projection surface), attached to two rollers: by synchronising them the format of the projection area can be varied, to obtain an image which is always bordered with black edges, enhancing contrast. These are special, non-varnished anti-reflective black edges, with a width of 7 cm. (while traditional edges are 3 or 5 cm. wide).

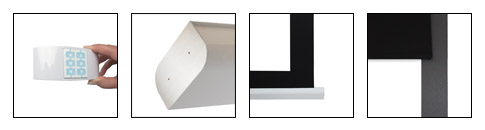

It is important to note that the top surface is directly in contact with the rear surface, thanks to the vertical alignment of the rollers: this avoids the formation of shadows during projection. Planarity is ensured by the front drop of the surface, while the special anchoring to the roller eliminates any risks of horizontal crease marks. A perfect surface is possible at all times, thanks to a dedicated command that unrolls the canvas completely, to facilitate cleaning operations. The motorized rolling is controlled through an integrated radio receiver encoder; an additional remote control is included for the setup of formats. The case is white (RAL 9016), with brushed aluminium lateral ends, which completely mask the screws. The anchoring system is simple and super-quick, for easy installation procedures.

There is a very ample variety of formats to choose from.

For projectors with a 4:3 matrix the following formats are available:

  • 1.33 NTSC PAL 4:3
  • 1.66 Wide European
  • 1.78 HDTV 16:9
  • 1.85 Wide
  • 2.35 Cinemascope 21:9
  • 2.40 Panavision

For projectors with a 16:9 matrix the following formats are available:

  • 1.78 HDTV 16:9
  • 1.85 Wide
  • 2.35 Cinemascope 21:9
  • 2.40 Panavision

Two more formats, with height lower than that of the starting format, can be added according to choice.



Create your own screen with the PSS (Personal Screen System):

  • personalized dimensions: width
  • formats: 7 different configurations
  • roller type: only radio integrated available
  • case: available only with case
  • case colour: available only in white with brushed aluminium lateral ends
  • projection surfaces: ReferenceWhite, ReferenceGrey, VisionWhite, VisionWhitePro, VisionAcoustik available only with black borders
  • height of top: from 10 to 40 cm
  • projection surface drop: front only
  • side of command/motor: right only


  Standard accessories:

  • kit with wall -or ceiling- quick mount brackets
  • Control unit ILT4 Somfy
  • infrared receiver
  • 8 channel infrared transmitter

  Optional accessories:
