Biformat Screen 250 - 350 cm.

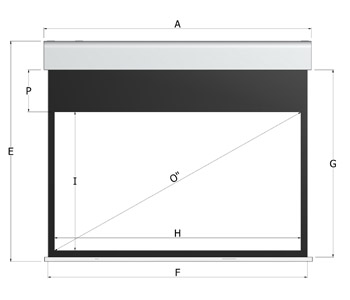

Format Max overall width Max lowbar width Max case width Max overall height
Max surface width
Max surface height
Max net surface width
Max net surface height
Standard top
Max extra top
Shipment sizes
A -2 -0.8 E
F
G
H
I
P
cm
cm
Biformat 250 248 249.2 269 243

243

233

233

10

40

258x30x33
275 273 274.2 294

268

268

258

258

10

40

283x30x33

300 298 299.2 319

293

293

283

283

10

40

308x30x33

325 323 324.2 344

318

318

308

308

10

40

333x30x33

350 348 349.2 369

343

343

333

333

10

40

358x30x33



Examples of configuration



Caratteristiche:

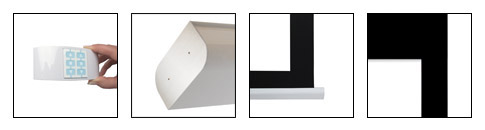

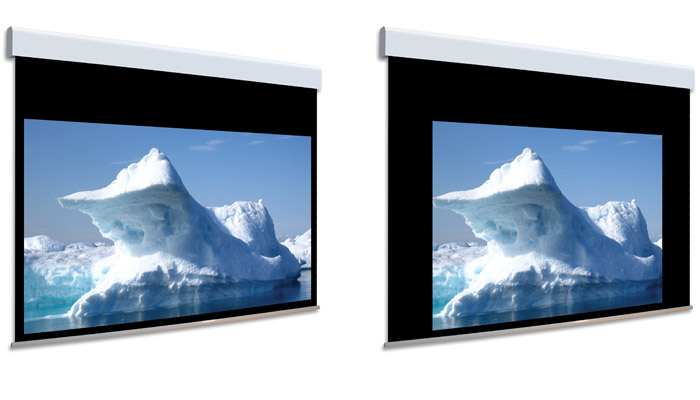

Two screens in one. Biformat is designed to satisfy the most demanding spectators of home cinema. Inside the same case are two distinct projection surfaces of different formats, bordered with special non-varnished anti-reflective black edges. These enable to enhance the contrast of the projected image much more effectively than traditional 3 or 5 cm edges. In addition to being positioned in direct contact with each other, to avoid focus loss, the projection surfaces are fixed to the roller, so as to eliminate the risk of horizontal crease marks. Furthermore, the front drop of the surface and the vertical alignment of the rollers ensure planarity. The motorized rolling is controlled through a wall-mounted remote control or an integrated radio receiver. Worthy of note is the white (RAL 9016) case, with brushed aluminium lateral ends, which completely mask the screws. Owing to the practical anchoring system, use is immediately possible.

All you need to do is choose among the numerous formats available.

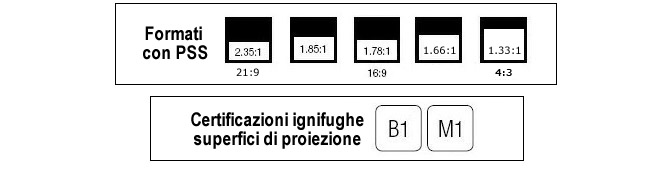

  • 1.33 NTSC PAL 4:3
  • 1.66 Wide European
  • 1.78 HDTV 16:9
  • 1.85 Wide
  • 2.35 Cinemascope 21:9
  • 2.40 Panavision



Create your own screen with the PSS (Personal Screen System):

  • personalized dimensions: width
  • roller type: motorized or radio integrated
  • case: available only with case
  • case colour: available only in white with brushed aluminium lateral ends
  • projection surfaces: VisionWhite, VisionWhitePro, VisionGrey, VisionAcoustik
  • height of top: from 10 to 40 cm
  • projection surface drop: front only
  • side of command/motor: right only


Standard accessories:

  • kit with wall -or ceiling- quick mount brackets
  • 2 unipolar selector switches
  • 2-channels Way remote for radi integrated screens
  • case for Way remote control for radio integrated screens

Optional accessories:
