SCREENS'S REMOTE CONTROL INTERFACE
(RF, RS232 and Trigger)
The Adeo control interface has been designed to control the screens’ various motorisations via different command modalities.
The hardware card features two types of connection: the first enables the connection of a two-phase motor to a common-forward-reverse-ground cabling; the second connects Adeo screens equipped with radio-integrated motors (with up to a maximum of 20) to a two-phase motor.
The interface is available in two versions – classic, or with RS232 control system – and can be operated with a power range of 110 ÷ 240 Vac 50/60 Hz. These command modalities are:
Screen's remote control interface for 1 two-phase mechanical motor
- Command with Open/Close switch
- Open/Close command with low-tension 5V dry contacts
- Command with RF remote control
- Command with 5-24V Trigger
Screen's remote control interface with RS232.
Simultaneous control of up to 1 mechanical motor and 20 radio-integrated motors
- Mechanical motor command with Open/Close switch
- Remote control of different scenarios with 5-24V Trigger
- RS232 interface with CRESTRON, AMX, CONTROL4 etc. control systems
| |
| | |
| | RECEIVER AND INFRARED (IR) REMOTE CONTROL FOR MOTORIZED SCREEN
Compatible with screen models with standard motor The kit consists of a receiver control unit, inclusive of manual emergency push-buttons, and a 7-channel remote control for managing up to 7 screens simultaneously. Based on infrared technology, this kit is compatible with intelligent self-learning remote control systems available on the market. |
| | |
| 3-CHANNEL WAY REMOTE CONTROL FOR RADIO-INTEGRATED SCREENS
Compatible with screens with radio integrated motor. 3-channel Way remote control for management of 3 radio-integrated screens. Supplied on request in addition to 1-way remote control.
| |
| | |
| | CASES FOR WAY REMOTE CONTROLS FOR RADIO-INTEGRATED SCREENS
Compatible with screens with radio-integrated motors in version with Way transmitter Cases for inserting Way remote control. Adeo offers an extensive range of models for every kind of furnishing: shockproof cases for tabletop and wall-mount (white), oval shockproof case for tabletop (available in orange, white or transparent) and square or rectangular wall-mount holder, (available in aluminium, white, graphite, black, transparent, and acqua green). |
| | |
MOUNTING KIT BRACKETS FOR INCEEL SCREENS
The package consists n°4 threaded rods M8; n°4 fillet blocks; n°4 plates for threads M8; n°4 nuts M8; n° 4 sleeves 30xM8+washers; n° 2 white plastic closure caps. | MOUNTING KIT BRACKETS FOR BIFORMAT AND MULTIFORMAT
The package consists n°2 ceiling/wall brackets; n°2 screws. |
| |

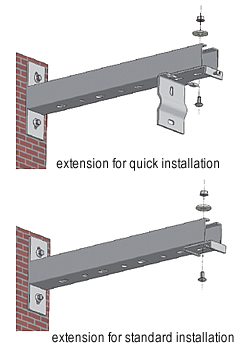

| EXTENSION FOR SCREEN BRACKETS
Extension for standard brackets supplied for anchoring all types of screens, to be applied in the presence of obstacles on the wall or ceiling. Available in the following sizes: 200 mm. (up to 150 Kg.), 360 mm. (up to 100 kg.), 440 mm. (up to 80 kg.), 520 mm. (up to 70 kg.) and 600 mm. (up to 50 kg.). Weights and sizes refer to a single bracket.
The use of more extensions allows a higher load-bearing capacity: for example, three 200 mm. extensions can bear a weight of 450 kg. |  |
| | |
| | BASES FOR FRAME SCREEN Pair of professional stands for floor assembly of the rigid frame screen model “Frame”. The bases are height-adjustable from a minimum 152 cm. to a maximum 284 cm. |
| | |
| ADAPTOR KIT FOR PLANO SCREEN
The kit consists of 4 rings which join the frame of the Plano screen to the bases of the Frame screen model to allow floor assembly. | |
