FramePro fixed screen (Frame) is a screenline by Adeo

FramePro 160 - 600 cm.

FramePro - General Characteristics:

A screen that offers a fourfold service. Following in the footsteps of Frame, FramePro features a structural aluminium frame – divided into several parts for easier transport – and particularly robust and hard wearing angles, which add solidity to the assembly.

All the best features of the Frame screen, plus some additional strategic characteristics. FramePro is equipped with a structural aluminium frame whose profile is divided into various parts, for a quick assembly. the novelties concern the projection surface and installation. The former can be front- or rear-mounted, by means of the traditional elastic cables or with press-buttons. The latter takes place via the mounting system integrated in the profile, which conceals the assembly structure (the wall-mounted bracket which is inserted into the rear part of the frame), ensuring complete adherence to the wall. The particularly robust and sturdy angles endow the assembly with extra solidity.

The screens come in sizes up to 4 metres for wall-mount applications and for installation on professional stands or aluminium trusses.

4 Models of FramePro:

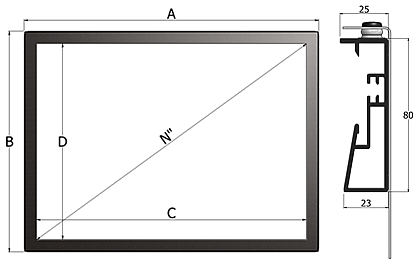

FramePro Front Button 160 - 600 cm.

Format	Overall width	Overall height	Net surface width	Net surface height	Diagonal inches	Shipment sizes	Net weight	Gross weight
Format	A	B	C	D	N''	cm	kg	kg
4:3	160	124	144	108	71	175x15x18	11	14
	200	154	184	138	91	215x15x18	13	16
	250	192	234	176	115	265x15x18	17	20
	300	229	284	213	140	315x15x18	22	25
	350	267	334	251	164	365x15x18	27	30
	400	304	384	288	189	415x15x18	32	35
	500	349	484	363	238	394x20x21	43	50
	600	454	584	438	287	469x20x21	53	60
16:9	160	97	144	81	65	175x15x18	10	13
	200	120	184	104	83	215x15x18	12	15
	250	148	234	132	106	265x15x18	16	19
	300	176	284	160	128	315x15x18	21	24
	350	204	334	188	151	365x15x18	26	29
	400	232	384	216	173	415x15x18	31	34
	500	288	484	272	219	303x20x21	41	48
	600	345	584	329	264	360x20x21	51	58

Version with front-mounted projection surface, applied with snap buttons:

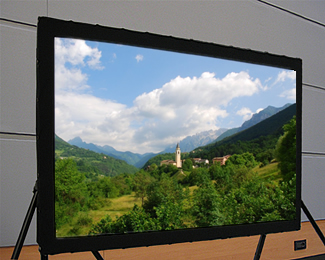

Particularly suitable for service, this proposal meets the expectations of those who prefer to apply the projection surface by means of snap buttons. A black edge is applied all around the border (where the buttons are), hiding any signs of wear resulting from repeated use, and typical of rental contexts on the profile (which is divided in several parts). The screen can be installed by means of professional stands (floor assembly); on aluminium trusses; wall-mounted (all sizes) with a mount system integrated into the profile (the wall brackets are inserted into the rear part of the frame, ensuring complete adherence). This version is available in standard sizes only.

Create your own screen with PSS (Personal Screen System):

Personalized dimensions: width and height
For transportation purposes: base and/or height sections can be divided into two parts
Projection surfaces: VisionFold and VisionFoldRear.

Standard accessories:

angles
joints (where applicable)
nuts and bolts for tightening the angles and joints

Optional accessories:

Download:

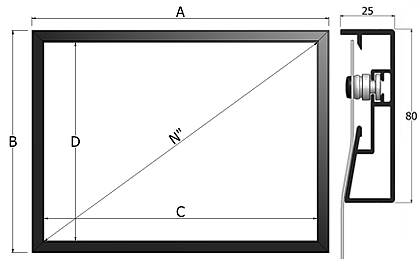

FramePro Rear Button 160 - 600 cm.

Format	Overall width	Overall height	Net surface width	Net surface height	Diagonal inches	Shipment sizes	Net weight	Gross weight
Format	A	B	C	D	N''	cm	kg	kg
4:3	160	124	144	108	71	175x15x18	11	14
	200	154	184	138	91	215x15x18	13	16
	250	192	234	176	115	265x15x18	17	20
	300	229	284	213	140	315x15x18	22	25
	350	267	334	251	164	365x15x18	27	30
	400	304	384	288	189	415x15x18	32	35
	500	349	484	363	238	394x20x21	43	50
	600	454	584	438	287	469x20x21	53	60
16:9	160	97	144	81	65	175x15x18	10	13
	200	120	184	104	83	215x15x18	12	15
	250	148	234	132	106	265x15x18	16	19
	300	176	284	160	128	315x15x18	21	24
	350	204	334	188	151	365x15x18	26	29
	400	232	384	216	173	415x15x18	31	34
	500	288	484	272	219	303x20x21	41	48
	600	345	584	329	264	360x20x21	51	58

Version with rear-mounted projection surface, applied with snap buttons:

For those who prefer to apply the projection surface with snap buttons. Wall flush installation is possible with all sizes, owing to the integrated mount system with wall-mount brackets inserted into the rear of the frame. In addition, infinite applications are also possible in the rental sector, thanks to the floor assembly (achieved by means of professional stands), or the aluminium truss option. Sizes are customisable. The profile is available in flocked or black varnished versions, and can be divided into several parts.

Create your own screen with PSS (Personal Screen System):

Personalized dimensions: width and height
Projection surfaces: VisionFold and VisionFoldRear
For transportation purposes: base and/or height sections can be divided into two parts
Profile type: black powder varnished or with black velvet flock.

Standard accessories:

angles
joints (where applicable)
nuts and bolts for tightening the angles and joints
brackets for wall mount

Optional accessories:

Download:

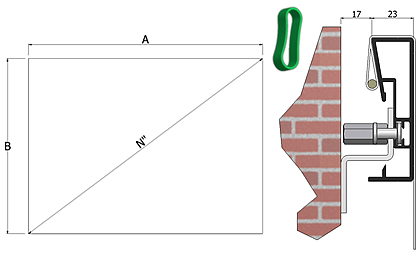

FramePro Front Elastic Bands 160 - 600 cm.

Format	Overall width	Overall height	Net surface width	Net surface height	Diagonal inches	Shipment sizes	Net weight	Gross weight
Format	A	B	A	B	N''	cm	kg	kg
4:3	160	120	160	120	79	175x15x18	11	14
	200	150	200	150	98	215x15x18	13	16
	250	188	250	188	123	265x15x18	17	20
	300	225	300	225	148	315x15x18	22	25
	350	263	350	263	172	365x15x18	27	30
	400	300	400	300	197	415x15x18	32	35
	500	375	500	375	246	394x20x21	43	50
	600	450	600	450	295	469x20x21	53	60
16:9	160	90	160	90	72	175x15x18	10	13
	200	113	200	113	90	215x15x18	12	15
	250	141	250	141	113	265x15x18	16	19
	300	169	300	169	136	315x15x18	21	24
	350	197	350	197	158	365x15x18	26	29
	400	225	400	225	181	415x15x18	31	34
	500	281	500	281	226	303x20x21	41	48
	600	338	600	338	271	360x20x21	51	58

Version with front-mounted projection surface, applied with elastics:

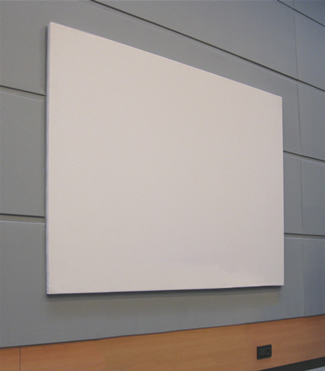

The best response to aesthetic demands and to the expectations of minimalist architecture: the projection surface conceals the structural parts of the screen, harmonising discreetly with the surrounding ambience. The wall mount (all sizes) includes spacers: this solution has been designed especially for easy installation, and to separate the screen from the wall by a couple of centimetres where necessary (e.g. in case of backlighting). Alternatively, floor assembly is possible by means of specific professional stands. Sizes are customisable. The profile can be divided into several parts.

Create your own screen with PSS (Personal Screen System):

Personalized dimensions: width and height
For transportation purposes: base and/or height sections can be divided into two parts
Projection surfaces: VisionWhitePro and VisionGrey.

Standard accessories:

elastic cables
fabric angles (for precise finishing)
joints (where applicable)
nuts and bolts for tightening the angles and joints
brackets for wall mount

Optional accessories:

Download:

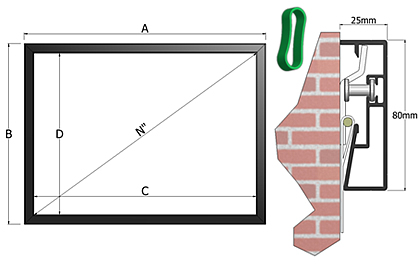

FramePro Rear Elastic Bands 160 - 600 cm.

Format	Overall width	Overall height	Net surface width	Net surface height	Diagonal inches	Shipment sizes	Net weight	Gross weight
Format	A	B	C	D	N''	cm	kg	kg
4:3	160	124	144	108	71	175x15x18	11	14
	200	154	184	138	91	215x15x18	13	16
	250	192	234	176	115	265x15x18	17	20
	300	229	284	213	140	315x15x18	22	25
	350	267	334	251	164	365x15x18	27	30
	400	304	384	288	189	415x15x18	32	35
	500	349	484	363	238	394x20x21	43	50
	600	454	584	438	287	469x20x21	53	60
16:9	160	97	144	81	65	175x15x18	10	13
	200	120	184	104	83	215x15x18	12	15
	250	148	234	132	106	265x15x18	16	19
	300	176	284	160	128	315x15x18	21	24
	350	204	334	188	151	365x15x18	26	29
	400	232	384	216	173	415x15x18	31	34
	500	288	484	272	219	303x20x21	41	48
	600	345	584	329	264	360x20x21	51	58

Version with rear-mounted projection surface, applied with elastics:

The latest generation Frame, with two significant improvements. This screen (all sizes) is installed flush with the wall, owing to the mounting system integrated into its profile, which conceals the assembly structure (the wall-mounted bracket inserted into the rear part of the frame).

Ideal for fixed installations, and particularly for home theatre applications, it blends in harmoniously with the surrounding environment. This version is available with black varnished or flocked profile. Floor assembly can be achieved by means of professional stands. Sizes are customisable. The profile can be divided into several parts.

Create your own screen with PSS (Personal Screen System):

Personalized dimensions: width and height
Projection surfaces: VisionWhite, VisionWhitePro, VisionGrey, VisionAcoustik, VisionMacroAcoustik, VisionRear, VisionFold and VisionFoldRear
For transportation purposes: base and/or height sections can be divided into two parts
Profile type: black powder varnished or with black velvet flock.

Standard accessories:

elastic cables
angles
joints (where applicable)
nuts and bolts for tightening the angles and joints
brackets for wall mount

Optional accessories:

Download:
