Biformat Tensio Screen 250 - 350 cm.

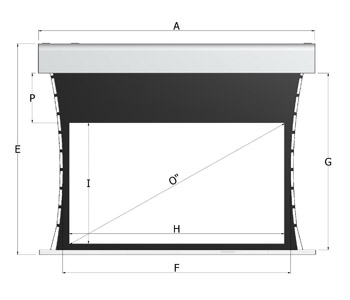

Format Max overall width Max lowbar widh Max case width Max overall height
Max surface width
Max surface height
Max net surface width
Max net surface height
Standard top
Max extra top
Shipment sizes
A -2 -0.8 E
F
G
H
I
P
cm
cm
Biformat 250 248 249.2 244 218

218

208

208

10

40

258x30x33
275 273 274.2 269

243

243

233

233

10

40

283x30x33

300 298 299.2 294

268

268

258

258

10

40

308x30x33

325 323 324.2 319

293

293

283

283

10

40

333x30x33

350 348 349.2 344

318

318

308

308

10

40

358x30x33

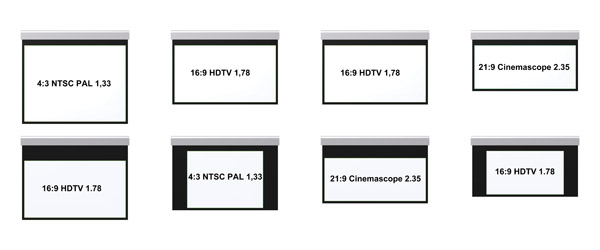

Examples of configuration



Caratteristiche:

Biformat Tensio is a screen designed to meet even the highest expectations in the home cinema sector. This is achieved thanks to a technical profile and a unique tensioning system. Inside the same case are two distinct projection surfaces of different formats, bordered with special non-varnished anti-reflective black edges. These enable to enhance the contrast of the projected image much more effectively than traditional 3 or 5 cm edges.

In addition to being positioned in direct contact with each other, to avoid focus loss, the projection surfaces are fixed to the roller, in such a way as to eliminate all risks of annoying horizontal crease marks. Furthermore, the front drop of the surface and the vertical alignment of the rollers ensure planarity. The motorized rolling is controlled through a wallmounted remote control or an integrated radio receiver. The case is white (RAL 9016), with brushed aluminium lateral ends, which completely mask the screws. Owing to the practical anchoring system, use is immediately possible.

All you need to do is choose among the numerous formats available.

  • 1.33 NTSC PAL 4:3
  • 1.66 Wide European
  • 1.78 HDTV 16:9
  • 1.85 Wide
  • 2.35 Cinemascope 21:9
  • 2.40 Panavision

All of them boast perfect tensioning, thanks to the classic tensioning system. Two elastic cables depart from the base and are threaded through dedicated same-size eyelets, placed along the sides of the screen: the arch that forms laterally ensures a harmonious aesthetic impact and a crease-free rolling, despite the presence of the eyelets.

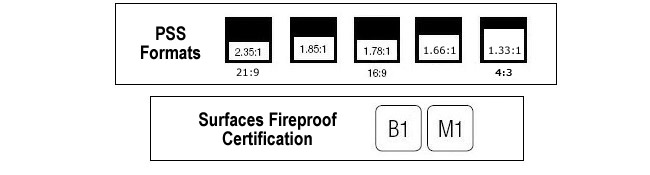

Create your own screen with the PSS (Personal Screen System):

  • personalized dimensions: width
  • roller type: motorized or radio integrated
  • case: available only with case
  • case colour: available only in white with brushed aluminium lateral ends
  • projection surfaces: VisionWhite, VisionWhitePro, VisionGrey, VisionAcoustik
  • height of top: from 10 to 40 cm
  • projection surface drop: front only
  • side of command/motor: right only


Standard accessories:

  • kit with wall -or ceiling-mount brackets
  • 2 unipolar selector switches
  • 2-channels Way remote for radio integrated screens
  • case for Way remote control for radio integrated screens

Optional accessories:
